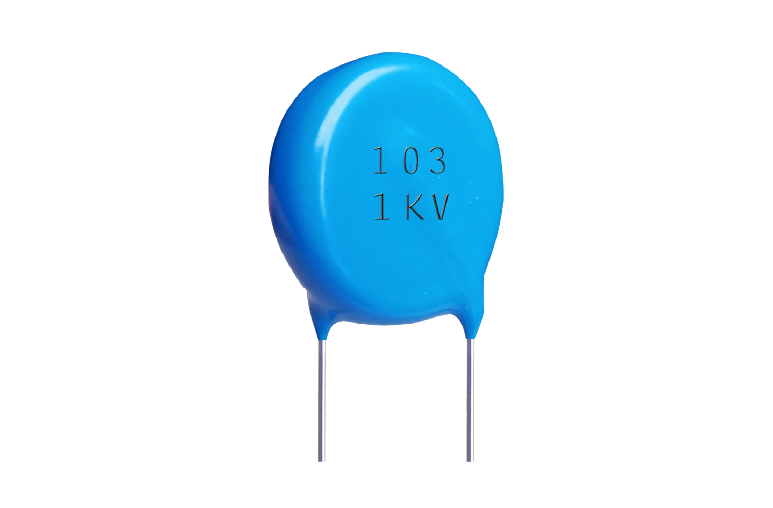

High Voltage Ceramic Capacitor 103M1KV 10nF±20%, Lead Pitch: 5mm

Product Features

Wide capacitance range from 10pF to 10000pF, meeting various high-voltage circuit application requirements;
Wide voltage range from 1kV to 6kV, providing excellent high-voltage withstand capability;
High-performance ceramic dielectric material with excellent DC voltage endurance, compact size, and space-saving design;
Excellent frequency characteristics and low loss performance, suitable for high-frequency and high-voltage electronic circuits;
RoHS, REACH, and halogen-free compliant.

Applications

Suitable for high-voltage bypass, coupling, filtering, and energy storage circuits;
Widely used in televisions, LCD power supplies, computers, monitors, network switches, and other electronic equipme

Specifications

Compliance

Reference Standard	GB/T 6346.9
Capacitance Range	10pF~10000pF
Capacitance Tolerance	±20%(M)
Rated Voltage	500VDC~6KVDC
Operating Temperature Range	-40°C ~ +125°C
Withstand Voltage Between Lead	1.5UR+500V(DC)，for 1~5sec
Temperature Characteristics	Y5V
Capacitance Change Rate	+22%/-82%
Dissipation Factor (tanδ)	≤2.5% (at1KHz, 25+5°C)
Insulation Resistance	IR≥10000MΩ

RoHS and REACH compliant
